Eye Bolt

HOME PRODUCTS BOLTS & SCREWS Eye Bolt

Eye Bolt

An Eye Bolt is a type of fastener with a circular loop (or "eye") at one end and a threaded shank at the other. The loop provides a secure point for attaching cables, ropes, or chains, making it ideal for lifting, pulling, or securing applications. Eye bolts can be used for a variety of purposes, including suspension, rigging, or as anchor points in construction and industrial settings. ... They are typically made from materials like steel, stainless steel, or alloy for strength and corrosion resistance. Eye bolts come in different designs, including shouldered (for heavier loads) and unshouldered (for lighter applications), and are available in various sizes and thread types.

CSK Slotted Screw

Specifications & Technical Data

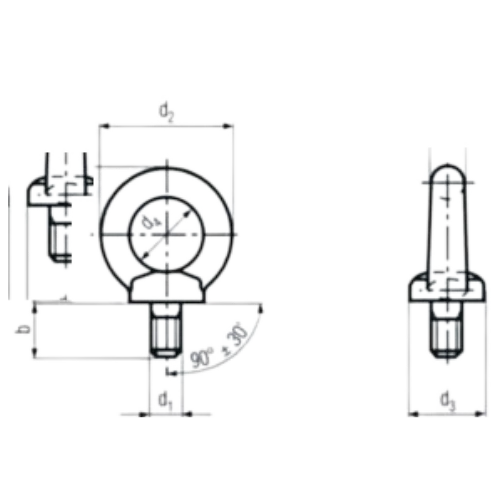

Bolt Technical Drawing

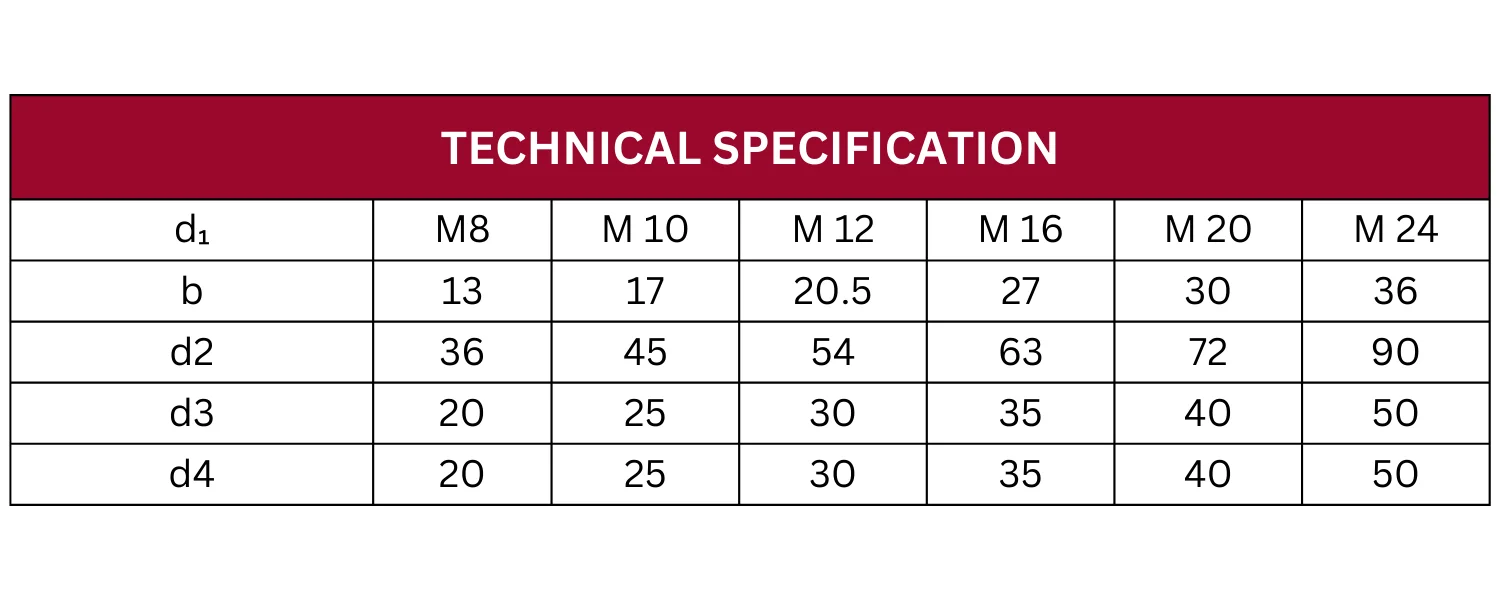

Technical Specification Table
